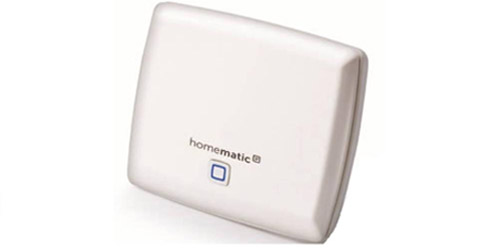

This device is a radio HMIP controller.
- It is providing e. g. the following functions:
- Administrating, controlling and monitoring of HMIP devices, e. g. temperature controller HMIP-eTRV, RF-remote controls as HMIP-WRC2 and sensor devices as HMIP-SWDO.
- Controlling by Ethernet / internet / gateway / Smartphone app.
- The frequency of the radio signal is 868.3 and 869.525 MHz.
Technical specifications
Supply voltage plug-in mains adapter: 100 V-240 V/50 Hz
Power consumption plug-in mains adapter: 2.5 W max.
Supply voltage: 5 VDC
Current consumption: 500 mA max.
Standby power consumption: 1.1 W
Radio frequency: 868.3 MHz/869.525 MHz
Typ. open area RF range: 400 m
Network: 10/100 MBit/s,
Dimensions (W x H x D): 118 x 104 x 26 mm
Weight: 153 g
